Problem in loading .hex and .bin file
Santhamurthy R 2017-03-24
Posted on March 24, 2017 at 11:38
Hello All,
I am using SPC560B54L5 Discovery board(SPC560B-Discovery), SPC5studio version 5.2.3 and UDE Visual Platform 4.2 version.
When I try to load the application the .elf is working fine. If i try to make use of .hex or .bin file (as per my requirement)
I am facing following problems,
When I try to load '.hex' file the code gets loaded successfully but while running it is throwing an error as ' Unknown Break cause'. Similarly, when I try to even load '.bin' file it prompts with 'Unknown File Format' error.

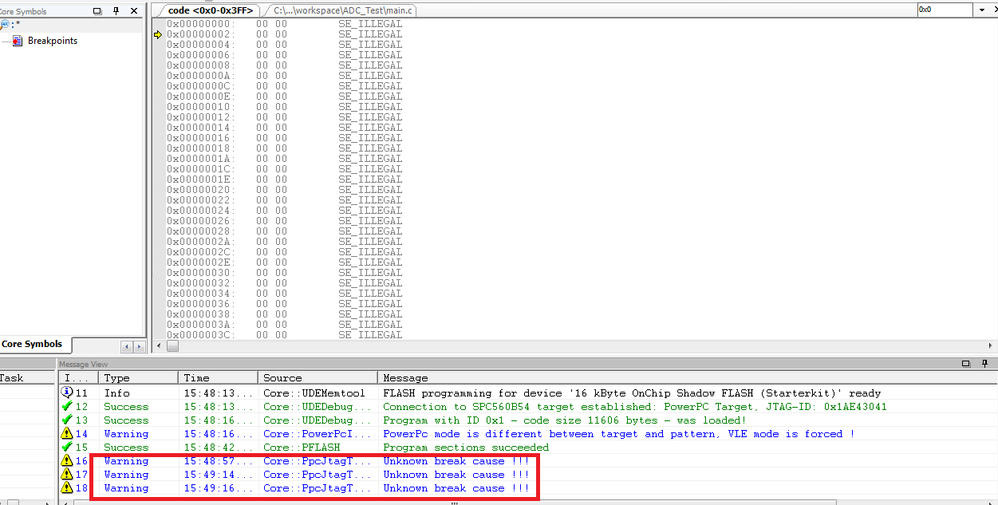

Error While loading .hex file:

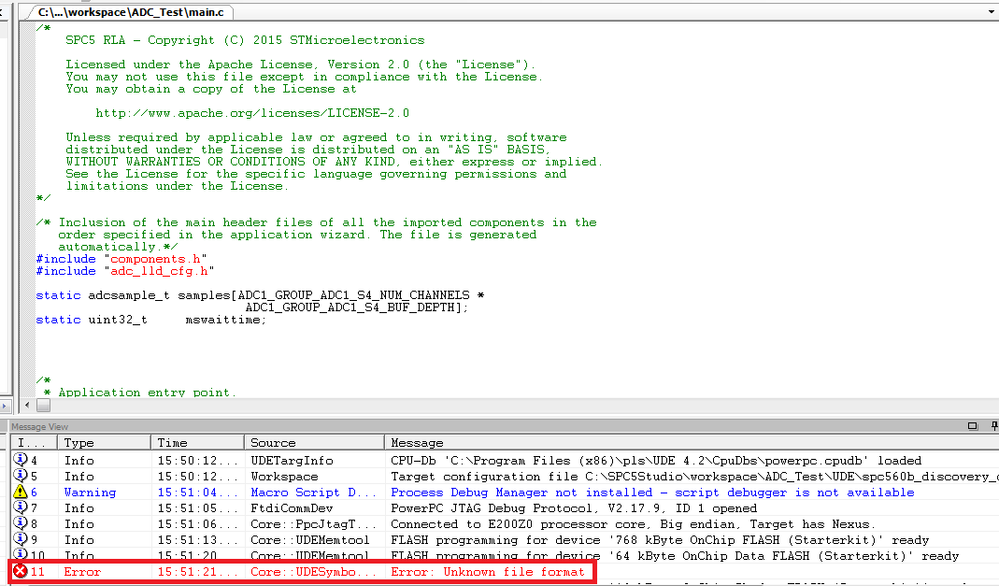

Error While loading .bin file:
Kindly suggest if I need to do the changes to the settings or preferences in IDE (or) UDE
Regards,
R.santhamurthy
------------------------------
Posted on March 24, 2017 at 11:51
Dear
R.santhamurthy
,PLS UDE is debugger
You can not debug by a hex file and put some breakpoints
if you want to debug , you have to use the symbol file.
PLS UDE is using Memtool to load in the flash your hex file.
Best Regards
Erwan
